China Lands Probe on Moon’s Far Side

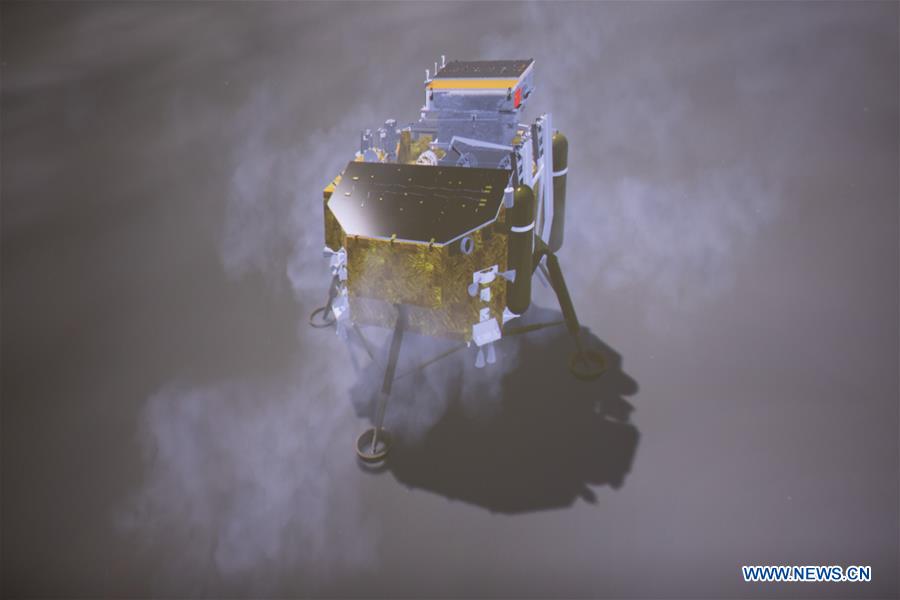

Artist concept of the landing of the Chang’e-4 lunar probe Credit: Xinhua/Jin Liwang

In a week extraordinarily filled with space exploration milestones, China has landed a probe softly on far side of the Moon! The China National Space Administration announced that the probe landed on Jan. 3, 2019 at 10:26 a.m. Beijing Time.

BEIJING, Jan. 3 (Xinhua) — China’s Chang’e-4 probe touched down on the far side of the moon Thursday, becoming the first spacecraft soft-landing on the moon’s uncharted side never visible from Earth.

The probe, comprising a lander and a rover, landed at the preselected landing area at 177.6 degrees east longitude and 45.5 degrees south latitude on the far side of the moon at 10:26 a.m. Beijing Time, the China National Space Administration announced. – Xinhua

https://twitter.com/JimBridenstine/status/1080678873422016513

The landing site is a smooth plain within the crater Von Kármán on the Moon’s far side. Credit: Public Domain

As a player of Kerbal Space Program, one of the first things I thought was: HOW do they communicate with the lander? There MUST be an orbiter or relay satellite of some sort. I was right! This Wikipedia entry answered it for me:

Queqiao satellite

Direct communications with Earth are impossible on the far side of the Moon, since transmissions are blocked by the Moon itself. Communications must go through a communications relay satellite, which is placed at a location that has a clear view of both the landing side and the Earth. On 20 May 2018, CNSA launched the Queqiao (Chinese: 鹊桥; pinyin: Quèqiáo, meaning “Magpie Bridge”) relay satellite to a halo orbit around the Earth–Moon L2 point. The relay satellite has a mass of 425 kg (937 lb), and it uses a 4.2 m (14 ft) antenna to receive X band signals from the lander and rover, and relay them to Earth control on the S band.

The spacecraft took 24 days to reach L₂, using a lunar swing-by to save fuel. On 14 June 2018, Queqiao finished its final adjustment burn and entered the L₂ halo mission orbit, which is about 65,000 kilometers from the Moon. This is the first lunar relay satellite at this location.

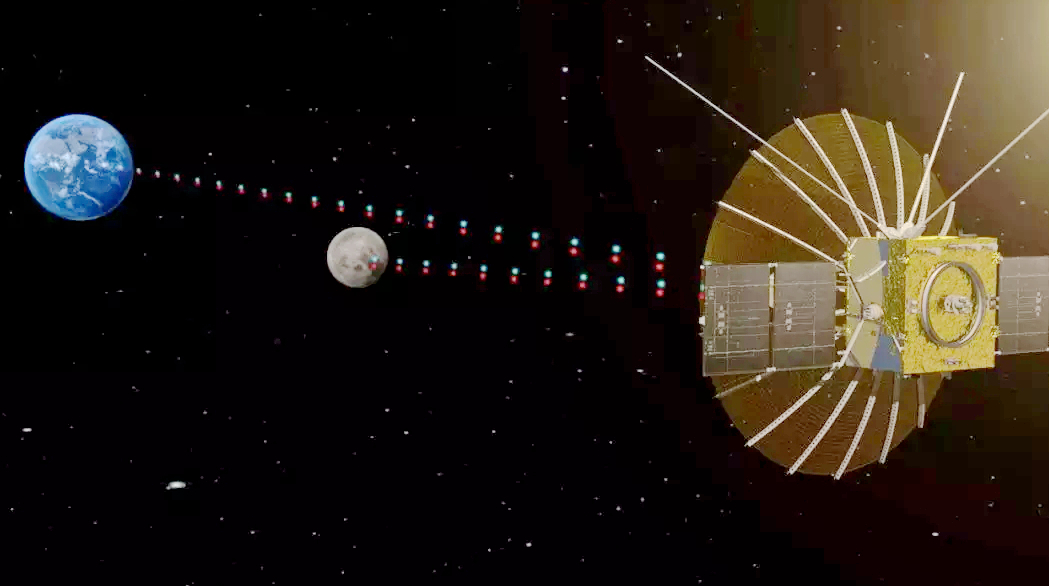

The Queqiao satellite will communicate between Earth and the Chang’e 4 lander Credit: China Aerospace Science and Technology Corporation

Microsatellites

As part of the Chang’e 4 mission, two microsatellites (45 kg (99 lb) each) named Longjiang-1 and Longjiang-2 (Chinese for “Dragon River”), were launched along with Queqiao in May 2018. However, Longjiang-1 failed to enter lunar orbit, while Longjiang-2 succeeded and is currently operational in lunar orbit. These microsatellites were tasked to observe the sky at very low frequencies (1-30 MHz), corresponding to wavelengths of 300 m to 10 m, with the aim of studying energetic phenomena from celestial sources. Due to the Earth’s ionosphere, no observations in this frequency range have been done in Earth orbit, offering potential breakthrough science.

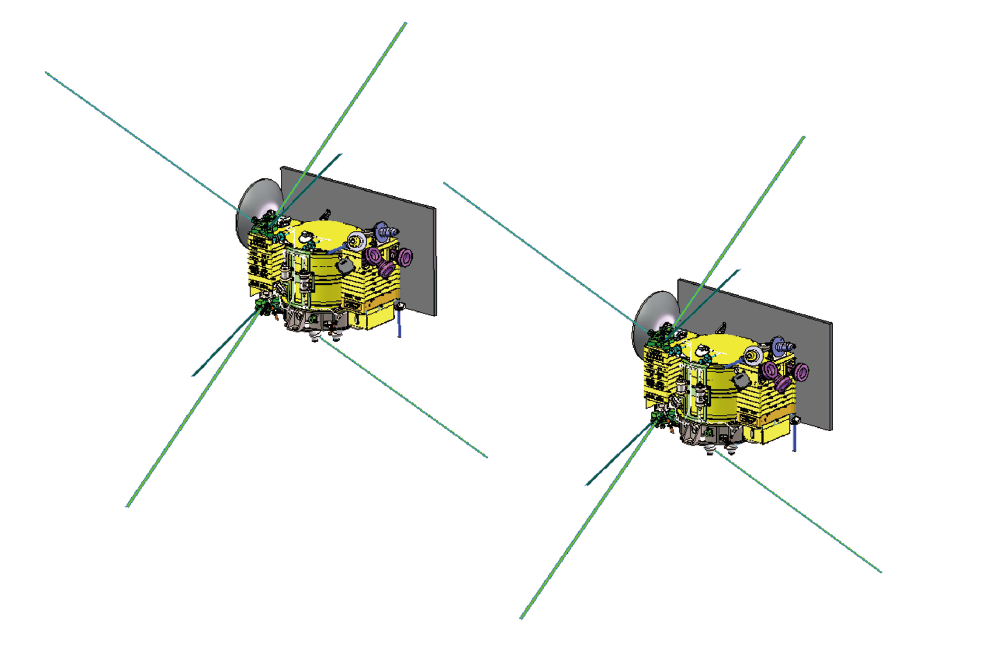

Longjian-1 and 2 microsatellites. Credit: Lunar Exploration and Space Engineering Center

Lander and rover

As is the case with many of China’s space missions, the details of the spacecraft and the mission in general have been limited. What is known is that much of the Chang’e 4 lander and rover design is modeled after Chang’e-3 and its Yutu rover. In fact, Chang’e 4 was built as a backup to Chang’e 3, but has been adapted to the specifics of the new mission. The lander and rover were launched six months after the launch of the Queqiao relay satellite, on 7 December 2018, 18:23 UTC.

The total landing mass is 1,200 kg (2,600 lb).

After landing, the lander will extend a ramp to deploy the rover to the lunar surface. The rover measures 1.5 × 1.0 × 1.0 m (4.9 × 3.3 × 3.3 ft) and has a mass of 140 kg (310 lb). The rover was fabricated at Dongguan, Guangdong province, is solar-powered, and it is propelled by six wheels. The rover’s nominal operating time is three months, but after the experience with Yutu rover in 2013, the rover design was improved and Chinese engineers are hopeful it will operate for “a few years”.

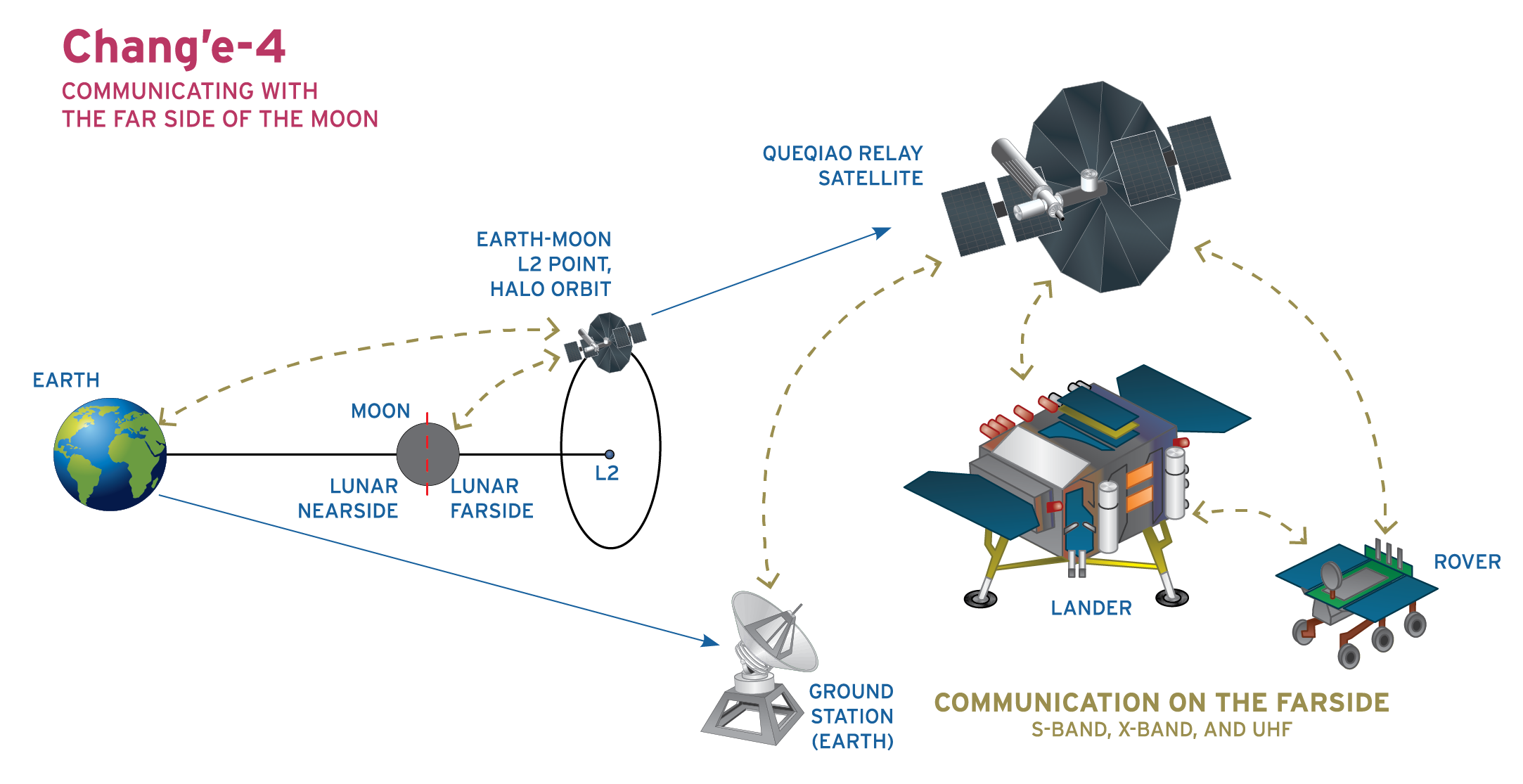

Chang’e-4 Mission Profile. Credit: Loren Roberts for The Planetary Society
