• Optical System: Aplanatic Gregorian, f/9
  • Focal Length: 16.48 m
  • Primary Mirror: f/1.0, Diameter 1.83 meters
  • Secondary Mirror: f/0.9, Diameter 0.38 meters
  • Back Focal Distance: 50.80 mm (effective)
  • Vignetting-Free Field: 72 mm diameter (15 arcmin)
  • Image Scale: 12.52 arcsec/mm
  • Image Quality: 0.1 arcsec throughout 6.8 arcmin diameter flat FOV
  • Mount: altitude-azimuth with derotator
  • Latitude: 32 42’ 04.69” N
  • Longitude: 109 53’ 31.25” W
  • Altitude: 3191 meters
  • Driving Time from Tucson: 3.5 hours in good conditions
  • IAU Observatory Code Number: 290

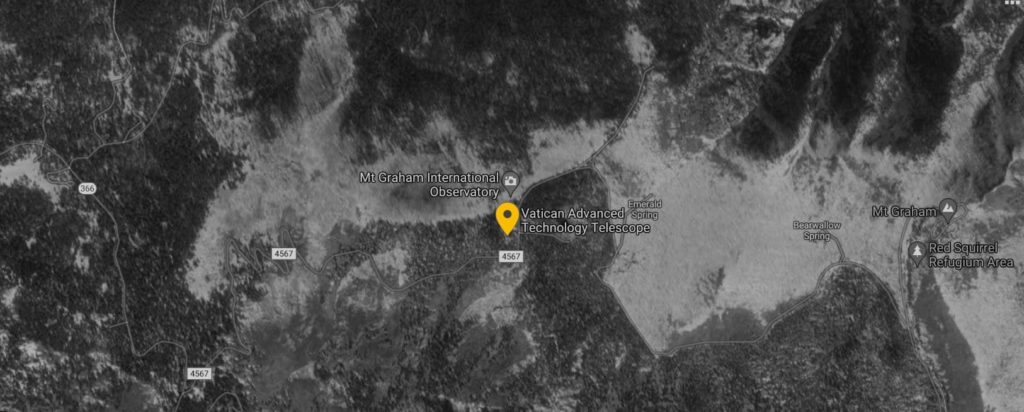

Map of the Location of VATT

VATT4k is an astronomical CCD camera specially designed for photometric surveys and for observing faint objects by Dr. Michael Lesser at the University of Arizona Imaging Technology Laboratory. Though conceptually similar to the CCD chips commonly found in digital cameras and cell phones, these chips have been specially optimized to achieve remarkable sensitivity.

Technical information: STA0500A back illuminated 4K CCD, ITL serial number 8301, installed March 2017, and updated 26 January 2018.

  • Pixels: 4096x4096, 15x15 microns
  • Gain: 1.9 e/DN
  • Full Well: ADC limited (65k DN) = ~120,000 electrons unbinned
  • Noise: ~3.9 electrons
  • Photon Transfer Curve
  • Gain Curve
  • FOV: 12.5 arcmin square
  • Pixel Scale: 0.188 arcsec/pixel
  • Wavelength Range: 300 - 1000 nm, peak 96% at 450 nm
  • Preamplifiers added October 2008 inside the dewar. These give faster readout and lower noise.

The previous CCD camera, in use from 2007 - 2017, had the following characteristics:

  • Installed: September 2007
  • Design: Thinned back-ill. CCD (AzCam STA0500A)
  • Size: 4032 x 4032 pixels
  • Pixel Size: 15 micron (square)
  • Field of View: 12.5’ (arc-minute) square
  • Plate Scale: 0.1875” (arc-second)/pixel
  • Default Gain: 1.8 e-/ADU
  • Read Noise: 5.2 e- (nominal)
  • Well Depth: 95,000 e-, 16-bit ADU
  • Read Time: 74 seconds (full-frame)
  • Spectral Response: 300 – 1000 nm (QE >50% from 300 – 860 nm)

VATTSpec is a medium resolution CCD range spectrograph with a “skinny chip” having excellent cosmetics. Its UA ITL chip, Serial Number 8228, has a gain = 1.3 e/DN with setting 10, noise = 3.4 electrons, and the full well is 65k DN (=85,000 electrons at gain 10)

This optical region spectrograph has AR coated refractive optics, with a beam size at its camera of 125 mm, giving...

  • Slit Length: 30 arcsec
  • Wavelength Range: 360 - 950 nm
  • Spectral Coverage: 100 nm at 0.1 nm resolution
  • Spectral Resolutions: 0.1, 0.2, and 0.4 nm with 1 arcsec wide slit
  • Detector: Back illuminated, low noise CCD STA0520A, with very nice cosmetics
    • ITL Serial Number 8228
    • 2688x512 pixels, 15x15 microns
    • Detector operating temperature -110C
    • Gain: 1.3 e/DN with setting 10; 2.6 e/DN with setting 5
    • Full Well, both gains: ADC limited (65k DN) = 85,000 or 170,000 electrons
    • Noise: 3.4 electrons (3.2 in overscan region)
    • Quantum Efficiency Curve
  • Efficiency: Determined by Mark Wagner for telescope plus spectrograph

Bandpass filters available: S8612 (red blocking); GG-400, GG-475, OG-550 (cut-offs to the blue in nm).

  • Installed: March 2011
  • Design: Medium dispersion spectrograph
  • Slit: 30” (arc-second) length on-axis
  • CCD: 2688 x 512 pixel (3.4 e- readnoise)
  • Pixel Size: 15 micron (square)
  • Resolution: 1, 2, 4 Å per 2 pixels w/ 1” slit
  • Coverage: 1000 Å at 1 Å resolution
  • Spectral Range: 3600 – 9500 Å

GUFI is a high speed imager provided to the VATT by the National University of Ireland Galway. This L3CCD system, based on an Andor iXon back-illuminated CCD camera, gives a readout time of only 2ms, extremely high time resolutions of up to 400 images a second (subframed), and very low light level sensitivity.

  • Field of view on VATT, 3 arcmin with current focal reducer.
  • On loan from NUI Galway.
  • Consult Richard Boyle for technical details, and see the NUI Galway “Brown Dwarfs and Substellar Objects” group.
  • Installed: June 2009 (on loan from NUI-Galway)
  • Design: Back-illum. CCD, Andor iXon™ DV887-BV
  • Size: 512 x 512 pixels
  • Pixel Size: 16 micron (square)
  • Field of View: 1.5’; 3.0’ with optional “eld expander
  • Plate Scale: 0.174”/pixel (0.348”/ pixel with “eld expander)
  • Gain: 2.1 – 10+ e-/ADU, depending on settings
  • Read Noise: 1.0 – 4.5+ e-, depending on settings
  • Well Depth: 160,000 e- (conventional mode), 14-bit ADU
  • Frame Rate: 4 fps; 400 fps with sub-“elds
  • Spectral Range: 390 – 1000nm (less with “eld expander)
  • Provides interface to derotator for all the above instruments.
  • Effective back focal distance, from guide box to focal surface, is 2.000".
  • Guide Camera: Two Andor Aspen Apogee cameras
  • Guide Camera Sensitivity: 16th magnitude with one second integration
  • Guide Camera Field of View: 3.43 x 2.57 arcmin
  • Guide Camera Total Available Sky View: 120 fields
  • Contains two filter wheels, each holding four 3.48" square filters. Adapters to accommodate 2" and 3" square filters are available.
  • UBVRI, uvby, Vilnius, Sloan, ECAS, and Order Blocking filters are currently provided.
  • Integrating sphere with continuum and calibration lamps.
